What is Layer Command in AutoCAD? Try This Layer Command

Ramesh Pradhan
Last updated: 2025/04/19 at 9:01 PM
Ramesh Pradhan
Share
11 Min Read
Layer Command in AutoCAD
SHARE

Hey, guys, welcome to my post. Today, in this post, we will discuss the Layer Command in AutoCAD Software. The layer is an important part of the AutoCAD design and drafting. So I will include this topic also. If you search for this command in AutoCAD, this is the best information fr you. I hope that after reading this article, you will be happy. So let’s get started.

Table of content
What is the utilization of the layer command in AutoCAD?Utilizing AutoCAD Drawing devices is extremely basicTo Create Drawing Layers from AutoCAD LayersUtilize this strategy to indicate another name for a layerWhat are the Advantages of Layer Command in AutoCAD?What Are the Available Layer Properties of AutoCAD?

What is the Layer Command in AutoCAD?

The layer order is utilized to control and deal with the drawings in AutoCAD for various purposes.

It builds the presentation execution of AutoCAD by concealing the part of our drawing when required. It likewise improves the visual intricacy of the drawing.

We need to make a bunch of layers having various properties. For instance, in a story plan or house plan, we can make separate layers for entryways, dividers, and so on.

We can make a number of layers by determining the name for the related layer. We can likewise control the request for the layers.

The shortcut command of the layer is ‘LA‘.

What is the utilization of the layer command in AutoCAD?

Layers are the essential strategy for sorting out the items in a drawing by capacity or reason. Layers can decrease the visual intricacy of a drawing and improve show execution by concealing data that you don’t have to see right now.

Before you begin drawing, make a bunch of layers that are valuable to your work. In a house plan, you may make layers for the establishment, floor plan, entryways, installations, electrical, etc.

In this model, the showcase is restricted to the articles on the Floor Plan layer by killing different layers.

Utilizing AutoCAD Drawing devices is extremely basic

There’s nothing hard about utilizing AutoCAD drawing devices. How about we attempt these straightforward advances. You can see the screen capture beneath, click straightaway/forward catch to move to the next stage.

Click the device you need to use on the left. AutoCAD drawing tools are on the Home tab. How about we start with a line.

You will see the powerful contribution close to your pointer. It will tell you what you need to do straight away. The vast majority of drawing instruments will ask you a point area. We will figure out how to enter the organization absolutely later. Simply click anywhere on your drawing zone.

Again, unique information will instruct you. Another point area. Snap anyplace once more. Focusing on that data on powerful information is likewise reflected in the order line.

AutoCAD keeps asking you for a point area. Snap once more.

When you complete the process of drawing line fragments, press [Enter] to complete it. Numerous veteran AutoCAD clients like to utilize [space] as another option.

Now we should attempt to draw a square shape.

Just like drawing lines, it will ask you for a point area. Snap anyplace.

And simply like a line apparatus, it will ask the next point. Yet, don’t click your mouse. Press down the bolt on your console, or snap the little bolt close to ‘determine the other corner point’

This is how you can see choices for making a square shape. The most widely recognized way is to characterize 2 focuses, however, you can also characterize it by utilizing different strategies. On the off chance that you find it in the order line, you can see the alternatives as well. You can utilize the alternative by composing the capital letters inaccessible choices.

To Create Drawing Layers from AutoCAD Layers

In Display Manager, click Data, Add Drawing Data, Drawing Layer.

In the Select Layers exchange box, select the AutoCAD layers that incorporate the items to show. The AutoCAD Map 3D toolset makes a layer in the Display Manager for each AutoCAD layer you select.

To gather the layers, select Group Selection. …

Click OK.

What is Layer in AutoCAD ? What are the Utility of layer ? How to Create Layer In AutoCAD ?

Why are Layer commands in AutoCAD Useful?

The following are the Layers that can be valuable from numerous points of view in AutoCAD:

To start with, because you draw objects on independent layers, it is simpler for you to comprehend the drawing. You can rapidly realize an item type by checking the layer. AutoCAD drawings are simply lines and curves. Utilizing layers can make the attraction more obvious.

Second, you don’t need to set properties for each article. You just need to set the properties for the layers. At the point when you draw an article on a specific layer, it will have a similar line weight, shading, line type, and different properties. It gives you superior control to plot your drawing.

Third, you can stow away/show or lock/open a layer. It implies you can have more prominent control of your drawing. You can bolt a few layers to forestall them are coincidentally adjusted.

Fourth, utilizing layers adds superior control to choose and change objects. Suppose you need to choose all parcel dividers in your attraction and duplicate them to the following common floor. AutoCAD doesn’t comprehend which lines are segment dividers. Notwithstanding, we can advise AutoCAD to choose lines on the Partition Wall layer.

Layer properties are settings that can have a rundown of various qualities for a showcase trademark. The accompanying properties can be set for a layer in the Layer Properties Manager:

Shading: Changes the shade of articles on the layer. Tapping the shading name shows the Select Color exchange box.

Line type: Changes the line type of articles on the layer. Tapping the line type name shows the Select line type discourse box.

Line weight: Changes the line weight of items on the layer. Tapping the line weight name shows the Line weight exchange box.

Plot style: If you are working with shading subordinate plot styles, you can’t change the plot style related to a layer. Tapping the plot style shows the Select Plot Style discourse box.

Depiction: You can add a portrayal to the layer. If your layers are made with a layer standard, the depiction is filled inconsequently. All things considered, it is recommended not to overwrite it.

Follow this methodology to make a particular layer the current layer in the drawing. You should choose an individual layer to make current. You can’t make different layers or layer bunches current.

At the point when you make a layer current, new items you make are drawn on that layer, except if they have their own layer task. For instance, if you make A-Wall the current layer, any lines, polylines, and other linework objects without a layer task will be drawn on that layer until you select another layer to be current.

If essential, open the Layer Properties Manager by clicking the Home tab Layers board Layer Properties.

In the correct sheet, double-tap the layer that you need to make current.

You can likewise choose the layer that you need to make current and snap.

The chosen layer is presently the current layer and is set apart with a green check in the Layer Properties Manager. The layer name is shown close to the Current Layer at the highest point of the Layer Properties Manager.

Utilize this strategy to indicate another name for a layer

  1. If essential, open the Layer Properties Manager by clicking the Home tab Layers board Layer Properties.
  2. Select the layer that you need to rename, and tap the layer name.
  3. Enter another name for the layer, and press Enter.

What are the Advantages of Layer Command in AutoCAD?

To save too much time-consuming.

Change the Colour of drawing objects.

Change the Line type of drawing objects.

We can freeze and lock the drawing object.

To find out the particular item of the Drawing object by searching the layer name

What Are the Available Layer Properties of AutoCAD?

The following are the series of Layer properties:

New AutoCAD layer

Current AutoCAD layer

Make Current

New AutoCAD layer VP Frozen

Delete the AutoCAD layer

New group filter

New property filter

Color

Line type

Line weight

Transparency

Plot

On/Off state

Turn all AutoCAD layers on

Freeze

Thaw all AutoCAD layers

Lock the AutoCAD layer

Unlock the AutoCAD layer

Isolate AutoCAD

Unisolate

Previous

Change the Current layer

Copy the object to the new layer

Layerwalk

Merge

Delete

So, guys, this all-important instruction on how to use the Layers command in AutoCAD. Without using layers in AutoCAD design or drawings. I hope this article is the best for you. Also helpful to you. Please share this post with your friend who wants to learn about the layer command.

What do you think?
Love0
Sad0
Happy0
Angry0
By Ramesh Pradhan
Follow:
Hi, My Name is Ramesh Pradhan. I am qualified as a Civil engineer From Nepal. I am Working in the Reputed Building Construction Company in Nepal. I am also the CEO and Co-Founder of the "Tech Me Engineer" Website. I am Working on the Construction information, AutoCAD, Autodesk, Estimation, Irrigation, Computer, and Related Field on this Website. "THANKS to VISIT"

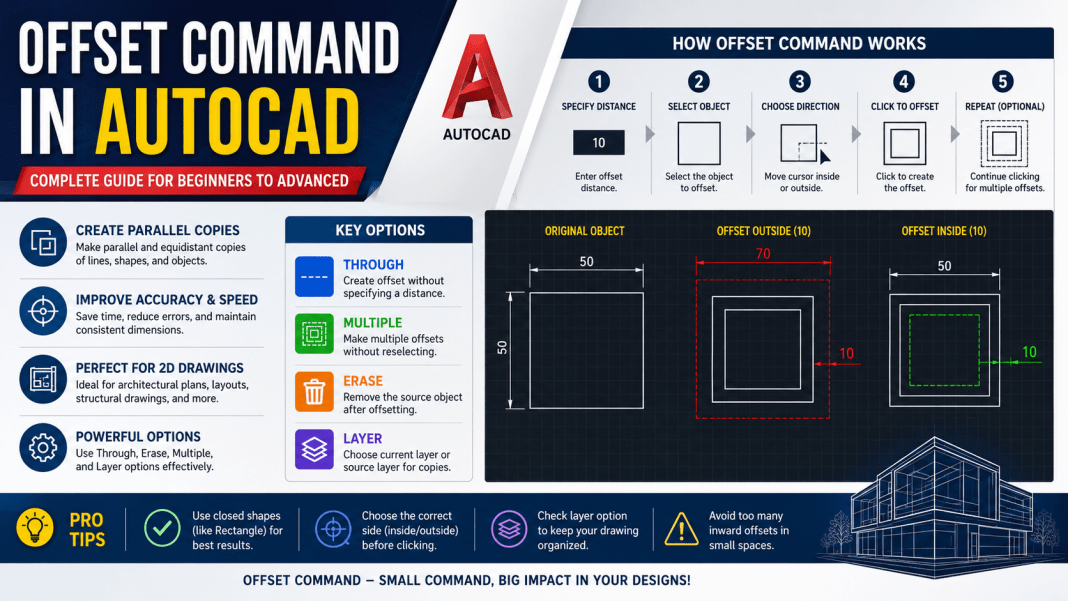

Previous Article What is The Offset Command in AutoCAD? How to Use Offset Command?
