🔩 Ultimate Guide to Rebar Calculator for Columns and Beams with BBS Formula

I hope you have already tried one of the best tools rebar calculator for columns and beams, on this website. Thanks for that. How was the tool? Please provide feedback in the comment section.

In civil and structural engineering, the integrity of a building depends heavily on the accurate placement and quantity of reinforcement bars (rebars).

Whether you’re designing a simple two-storey house or a high-rise frame structure, you must calculate the right steel requirement for columns and beams.

This is where an advanced rebar calculator for columns and beams becomes essential.

This complete guide explains how to use it, includes a bar bending schedule with a formula, and shows you how to use a rebar weight calculator for beams.

📘 What is a Rebar Calculator for Columns and Beams?

A rebar calculator for columns and beams is a smart engineering tool that automates the process of calculating:

• Number of rebars
• Length of each bar
• Total steel weight
• Hook lengths, bends, overlaps
• Bar bending schedule (BBS)
• Tie bar spacing (for columns)
• Distribution bar layout (for beams)

It saves time, eliminates manual errors, and helps engineers and contractors plan reinforcement accurately.

🛠️ Components of Bar Bending Schedule with Formula

Before using the calculator, you must understand the key components of the bar bending schedule with a formula. Here’s what each part means:

🔹 1. Cutting Length (CL)

For main bars in a column:

mathematica

CL = Clear Column Height – Top Cover – Bottom Cover + Hook Length (both ends)

🔹 2. Hook Length (HL)

Standard formula:

HL = 9 × bar diameter (D)

For a 12 mm diameter bar:

HL = 9 × 12 = 108 mm

🔹 3. Number of Ties (Stirrups) in Column

mathematic
Number of Ties = (Clear Column Height / Tie Spacing) + 1

🔹 4. Beam Rebar Cutting Length (with bends)

For top and bottom bars:

CL = Beam Length – Cover (both ends) + Bend Allowance

📏 Example: Rebar Calculator for RCC Column

Let’s take a real-life scenario:

• Column Height = 3000 mm
• Bar dia = 16 mm
• Concrete cover = 40 mm
• Hook = 9D = 144 mm
• Quantity = 4 rebars

📐 Cutting Length:

CL = 3000 – 40 – 40 + (2 × 144) = 3108 mm per bar

💡 Total Steel for Main Bars:

4 × 3108 = 12,432 mm = 12.43 m

Use the rebar weight calculator for a beam or column to find the steel weight.

⚖️ Steel Weight Calculation (Using Formula)

Use this universal steel formula:

Weight = (D² / 162) × Length in meters

For 16 mm dia, 12.43 m bar:

Weight = (16² / 162) × 12.43 = 19.6 kg

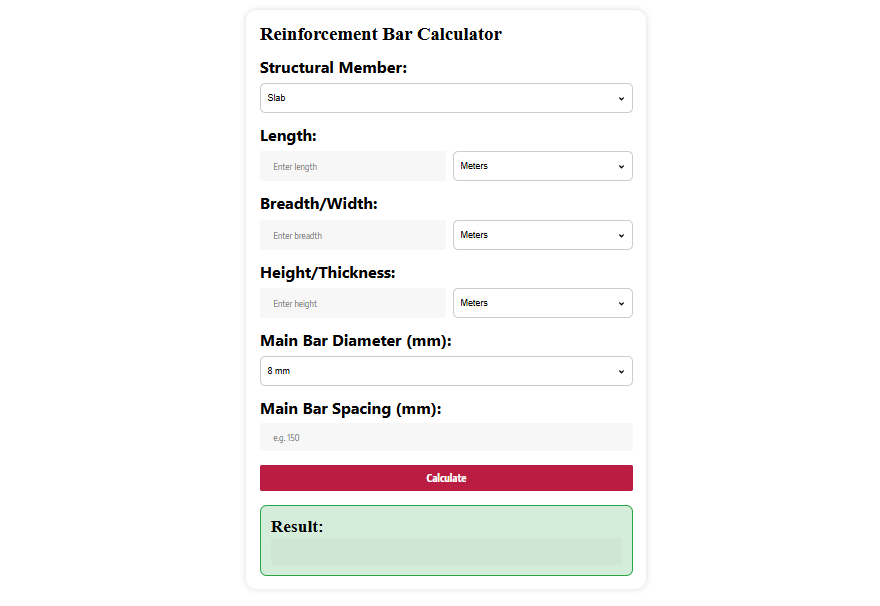

🧮 Online Tool: Try Our Rebar Calculator

On techmeengineer.com, we have a ready-to-use rebar calculator for columns and beams.

You can:

• Select RCC member (Slab, Beam, Column)
• Enter size, bar diameter, and spacing
• Get instant total length, number of bars, and weight

🟢 No login required. It’s free and engineer-tested.

💼 Who Should Use This?

✅ Civil Engineers – For site-ready estimates
✅ Contractors – For billing & procurement
✅ Students – For BBS practice
✅ Estimators – For DPRs and BOQ accuracy
✅ Site Supervisors – For planning steel cutting and bending

📌 Conclusion

Whether you’re building in Nepal, India, or anywhere in the world, reinforcement bars are the backbone of your RCC structure. Instead of relying on guesswork, use a professional rebar calculator for columns and beams. It ensures safety, precision, and professionalism on site.
